  • Ubuntu 64系统编译android arm64-v8a 的openssl静态库libssl.a和libcrypto.a

    发表于      阅读(42)     博客类别:Crawler     转自:https://www.cnblogs.com/Fitz/p/18419099
    如有侵权 请联系我们删除  (页面底部联系我们)
    #!/bin/bash
    # Cross-compile environment for Android on ARM64 and x86
    #
    # Contents licensed under the terms of the OpenSSL license
    # http://www.openssl.org/source/license.html
    #
    # See http://wiki.openssl.org/index.php/FIPS_Library_and_Android
    #   and http://wiki.openssl.org/index.php/Android

    #####################################################################

    # Set ANDROID_NDK_ROOT to your NDK location. For example,
    # /opt/android-ndk-r8e or /opt/android-ndk-r9. This can be done in a
    # login script. If ANDROID_NDK_ROOT is not specified, the script will
    # try to pick it up with the value of _ANDROID_NDK_ROOT below. If
    # ANDROID_NDK_ROOT is set, then the value is ignored.
    _ANDROID_NDK="android-ndk-r14b"
    # _ANDROID_NDK="android-ndk-r10"

    # Set _ANDROID_EABI to the EABI you want to use. You can find the
    # list in $ANDROID_NDK_ROOT/toolchains. This value is always used.
    _ANDROID_EABI="aarch64-linux-android-4.9"

    # Set _ANDROID_ARCH to the architecture you are building for.
    _ANDROID_ARCH=arch-arm64

    # Set _ANDROID_API to the API you want to use. You should set it
    # to one of: android-14, android-9, android-8, android-14, android-5
    # android-4, or android-3. You can't set it to the latest (for
    # example, API-17) because the NDK does not supply the platform.
    _ANDROID_API="android-24"

    #####################################################################

    # If the user did not specify the NDK location, try and pick it up.
    if [ -z "$ANDROID_NDK_ROOT" ]; then

      _ANDROID_NDK_ROOT=""
      if [ -d "/usr/local/$_ANDROID_NDK" ]; then
        _ANDROID_NDK_ROOT="/usr/local/$_ANDROID_NDK"
      fi

      if [ -d "/opt/$_ANDROID_NDK" ]; then
        _ANDROID_NDK_ROOT="/opt/$_ANDROID_NDK"
      fi

      if [ -d "$HOME/$_ANDROID_NDK" ]; then
        _ANDROID_NDK_ROOT="$HOME/$_ANDROID_NDK"
      fi

      if [ -d "$PWD/$_ANDROID_NDK" ]; then
        _ANDROID_NDK_ROOT="$PWD/$_ANDROID_NDK"
      fi

      # If a path was set, then export it
      if [ ! -z "$_ANDROID_NDK_ROOT" ] && [ -d "$_ANDROID_NDK_ROOT" ]; then
        export ANDROID_NDK_ROOT="$_ANDROID_NDK_ROOT"
      fi
    fi

    # Error checking
    if [ -z "$ANDROID_NDK_ROOT" ] || [ ! -d "$ANDROID_NDK_ROOT" ]; then
      echo "Error: ANDROID_NDK_ROOT is not a valid path. Please edit this script."
      exit 1
    fi

    if [ ! -d "$ANDROID_NDK_ROOT/toolchains" ]; then
      echo "Error: ANDROID_NDK_ROOT/toolchains is not a valid path. Please edit this script."
      exit 1
    fi

    if [ ! -d "$ANDROID_NDK_ROOT/toolchains/$_ANDROID_EABI" ]; then
      echo "Error: ANDROID_EABI is not a valid path. Please edit this script."
      exit 1
    fi

    #####################################################################

    # Based on ANDROID_NDK_ROOT, try and pick up the required toolchain.
    ANDROID_TOOLCHAIN=""
    for host in "linux-x86_64" "linux-x86" "darwin-x86_64" "darwin-x86"
    do
      if [ -d "$ANDROID_NDK_ROOT/toolchains/$_ANDROID_EABI/prebuilt/$host/bin" ]; then
        ANDROID_TOOLCHAIN="$ANDROID_NDK_ROOT/toolchains/$_ANDROID_EABI/prebuilt/$host/bin"
        break
      fi
    done

    # Error checking
    if [ -z "$ANDROID_TOOLCHAIN" ] || [ ! -d "$ANDROID_TOOLCHAIN" ]; then
      echo "Error: ANDROID_TOOLCHAIN is not valid. Please edit this script."
      exit 1
    fi

    case $_ANDROID_ARCH in
      arch-arm)
        ANDROID_TOOLS="arm-linux-androideabi-gcc arm-linux-androideabi-ranlib arm-linux-androideabi-ld"
        CROSS_COMPILE="arm-linux-androideabi-"
        ;;
      arch-arm64)
        ANDROID_TOOLS="aarch64-linux-android-gcc aarch64-linux-android-ranlib aarch64-linux-android-ld"
        CROSS_COMPILE="aarch64-linux-android-"
        ;;
      arch-x86)
        ANDROID_TOOLS="i686-linux-android-gcc i686-linux-android-ranlib i686-linux-android-ld"
        CROSS_COMPILE="i686-linux-android-"
        ;;
      *)
        echo "ERROR ERROR ERROR: Unknown architecture $_ANDROID_ARCH"
        exit 1
        ;;
    esac

    for tool in $ANDROID_TOOLS
    do
      # Error checking
      if [ ! -e "$ANDROID_TOOLCHAIN/$tool" ]; then
        echo "Error: Failed to find $tool. Please edit this script."
        exit 1
      fi
    done

    # Only modify/export PATH if ANDROID_TOOLCHAIN is good
    if [ ! -z "$ANDROID_TOOLCHAIN" ]; then
      export ANDROID_TOOLCHAIN="$ANDROID_TOOLCHAIN"
      export PATH="$ANDROID_TOOLCHAIN":"$PATH"
    fi

    #####################################################################

    # For the Android SYSROOT. Can be used on the command line with --sysroot
    export ANDROID_SYSROOT="$ANDROID_NDK_ROOT/platforms/$_ANDROID_API/$_ANDROID_ARCH"
    export CROSS_SYSROOT="$ANDROID_SYSROOT"
    export NDK_SYSROOT="$ANDROID_SYSROOT"

    # Error checking
    if [ -z "$ANDROID_SYSROOT" ] || [ ! -d "$ANDROID_SYSROOT" ]; then
      echo "Error: ANDROID_SYSROOT is not valid. Please edit this script."
      exit 1
    fi

    #####################################################################

    # Set other environment variables for the build
    export MACHINE=aarch64
    export RELEASE=2.6.37
    export SYSTEM=android
    export ARCH=arm64
    export CROSS_COMPILE="aarch64-linux-android-"

    export ANDROID_DEV="$ANDROID_NDK_ROOT/platforms/$_ANDROID_API/$_ANDROID_ARCH/usr"
    export HOSTCC=gcc

    VERBOSE=1
    if [ ! -z "$VERBOSE" ] && [ "$VERBOSE" != "0" ]; then
      echo "ANDROID_NDK_ROOT: $ANDROID_NDK_ROOT"
      echo "ANDROID_ARCH: $_ANDROID_ARCH"
      echo "ANDROID_EABI: $_ANDROID_EABI"
      echo "ANDROID_API: $ANDROID_API"
      echo "ANDROID_SYSROOT: $ANDROID_SYSROOT"
      echo "ANDROID_TOOLCHAIN: $ANDROID_TOOLCHAIN"
      echo "CROSS_COMPILE: $CROSS_COMPILE"
      echo "ANDROID_DEV: $ANDROID_DEV"
    fi


      上面的代码是 配置的OpenSSL 编译选项(shell 脚本)。复制代码后另存为Setenv-android.sh。

          Openssl 源码库下载链接:

          1、开始编译

        终端设置ndk 路径:  export ANDROID_NDK_ROOT=/home/lipan/androidsdk/android-ndk-r14b

         2、执行shell 脚本:source 命令

           将Setenv-android.sh 移动到 openssl 源代码文件夹终,然后在此处启动终端,输入:source ./Setenv-android.sh

        3、创建输出静态库的文件夹 (桌面路径)

       mkdir /home/lipan/Desktop/output/

    4、清理

         make clean


    5、配置openssl
    ./Configure android-arm64 \
        no-shared \
        no-ssl2 \
        no-ssl3 \
        no-comp \
        no-hw \
        no-engine \
        --openssldir=/home/lipan/Desktop/output/$ANDROID_API \
        --prefix=/home/lipan/Desktop/output/$ANDROID_API




    6、编译(下面这2句代码都是对的)
    make depend

    make all -j$(nproc)
    make all -j$(nproc) 命令用于在编译软件时启用并行化,以利用系统中的多个 CPU 核心
    -j$(nproc)-j 标志用于指定同时运行的作业(或进程)数量。$(nproc) 是一个 shell 命令,它返回可用的处理单元数量(即 CPU 核心数量)
    当你运行 make all -j$(nproc) 时,它会告知 make 使用与 CPU 核心数量相等的并行作业,这样可以显著加快构建过程。

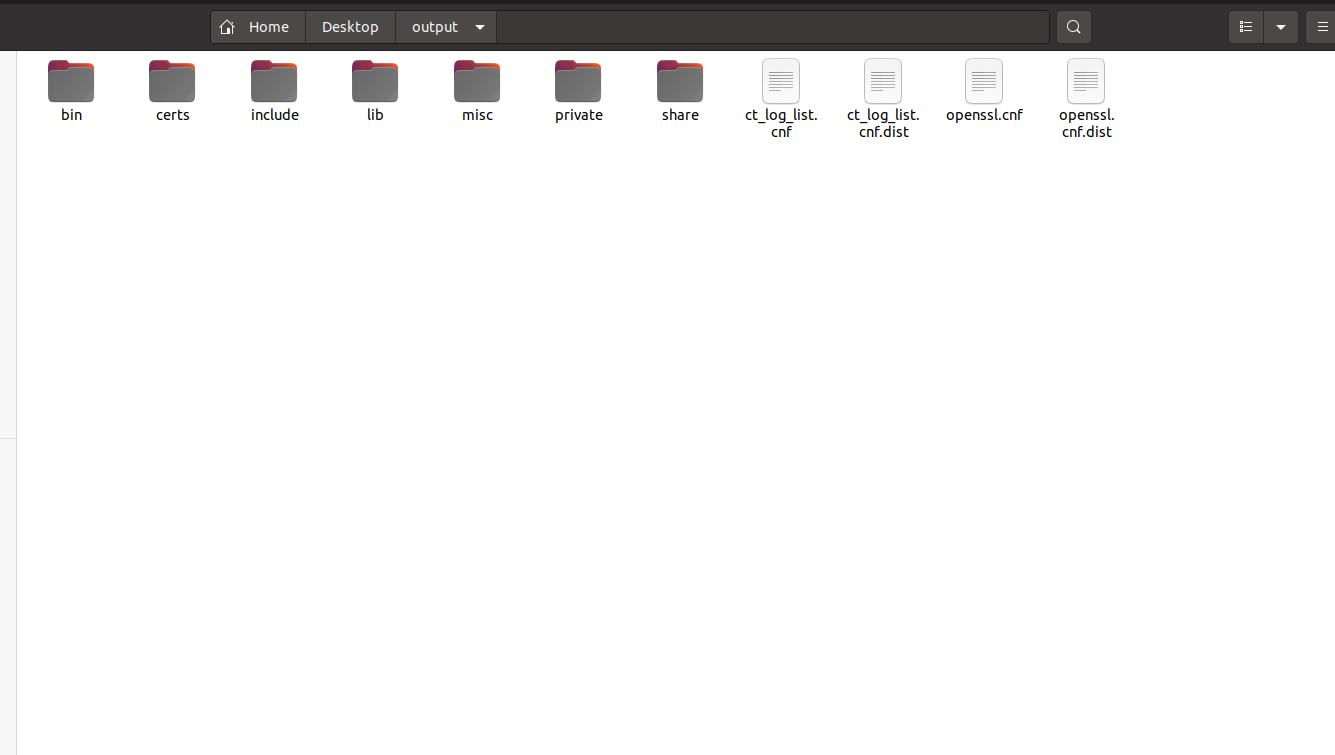

    7、最后一步:生成静态库
    make install
